Plasma cleaner

How it works

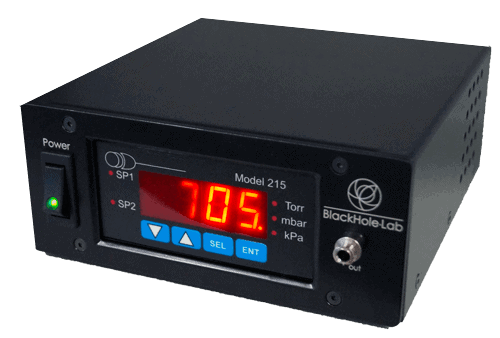

The pressure is automatically set thanks to the electro valve and the gauge controller.
The precision depends on the suction power of the pump and thus depends on each installation but Equinox can be adjusted to each situation during the installation to offer an accurate set more or less 50mTorr.

Maintenance and hazard

Equinox gathers really tough tools and almost none maintenance is required. The pressure control is guaranteed thanks to an electro valve that can handle 250 million of cycles and thus promises a long life time. The only maintenance operation is to change periodically the air filter if you use ambiant air as gas.

Performance

• Fast pressure set: The pressure will stabilize from the atmosphere to around 500 mTorr under 1 minutes.
• Easy to use: Switch on the pump and that’s it. No need of intervention after saving the set point pressure.
• Stable: The stability can be adjusted to the equipment and the pressure kept at +/- 50mTorr.
• Flexible: Do you need to modify your PDMS bonding process ? Change the plasma pressure set-point in 1 minute for all your following bonding.

Majors strengths

• Easy to use and set vacuum point.
• Two possible recordable set points.
• Automatic regulation.
• Adjustable inlet fluidic resistance to adjust the precision at the installation.
• Numeric vacuum gauge.
• Three different pressure units.
