Microfluidic sensor reader

MONITOR THE MEASUREMENT OF ALL YOUR MICROFLUIDIC SENSORS

Connect pressure and flow sensors wherever you want in the setup to closely monitor your microfluidic experiment.
The Sensor Reader module allows you to control 4 sensors simultaneously. Additionally, our software allows controlling several Sensor Readers simultaneously.
The MSR is the ideal supplement to the OB1 flow controller should you need high control over your experimental parameters.

Benefit in an optimal manner from the performance of Elveflow® Sensors with the Sensor Reader acquisition interface. The open interface Sensor Reader also allows you to use third-party sensors.

Fast and precise

With an acquisition sampling rate of up to 200 Hz and an 16 bit resolution, the Sensor Reader allows you to easily conduct experiments involving monitoring or controlling a physical parameter with analog and digital sensors in real time.

Wide sensors compatibility

 See Elveflow® fully compatible pressure sensor & flow sensor below

Noise reduction

An embedded analog 60 Hz low pass filter function can be activated on each channel independently to reduce sensor noise.

PERFORMANCE

Our Sensor Reader achieves an 16 bits resolution at up to 200 Hz sampling rate and a sub-resolution noise, for accuracy levels on your sensor measurements down to 0.05% of the full scale and a response time down to 5 ms.

• Sampling rate up to 200 Hz
• Resolution :from 9 to 16 bits
• Input range : 0 – 10 V
• Fully compatible with other Elveflow instruments
• Measurement noise below resolution
• Noise reduction function with a 3rd order 60 Hz low-pass filter

ELVEFLOW® PRESSURE & FLOW SENSORS – FULLY COMPATIBLE

We have already selected a wide range of integrated sensors fitting microfluidic applications.

Flow Sensors (MFS)

• Resolution 1,5 pL/sec
• Ranges from 0.07 to 5000 μL/min

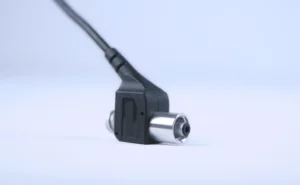

Pressure Sensor (MPS & MFP)

• Accuracy down to 0.2 % of Full Scale
• 4 ranges from 5 psi (340 mBar) to 100 psi (7 bar)

All our sensors are provided with an M8 electrical connection and can be used with the Sensor Reader. We also provide all the microfluidic connector kits necessary to start your experiment.
