Home / Xurography Kit
Microfabrication stations

Xurography kit

Create your paper-based microfluidic chips
Easy to use

Make your own chips with our plug and play equipment

Fast fabrication processes

Adapted for prototyping

30×30 cm² mattress

For large designs or several designs at once

Wide range of materials

Adapted to cut different types of materials

Talk to an expert

Features & Benefits

Create your paper-based microfluidic chips

  • Fast protocols
  • Easy to handle
  • Double tool holder and tunable cutting parameters for more versatility

Benefits

  • Easy to use
  • Fast fabrication processes: adapted for prototyping
  • 30×30 cm² mattress for large designs or making several designs at once
  • Adapted to cut over a wide range of materials
  • Web software and mobile application for more flexibility
  • Double-head tool to cut and write
  • Resolution down to 200µm

Included

Equipment

  • Cutting plotter
  • Rolling mill machine
  • Possibility of adding a PDMS station for molds creation

Accessories & Chemicals

Different paper substrates and pencils with hydrophobic ink or adhesives according to your application as well as all necessary lab accessories (tweezers, scissors, etc.) are included.

We give you all the consumable references and provider information to refill your stock.

Support

Standard support pack: We take care of the after-sale of all your instruments and provide microfabrication process-sheet and tutorials plus provide you 1-years assistance to answer any microfabrication questions you may have.

Extended support pack: In addition to the standard support pack, our R&D team installs the equipment directly in your lab. This way, we adapt all our microfabrication processes on-site fitted to your needs. We also train your team, so they are ready to fabricate microfluidic chips straight away.

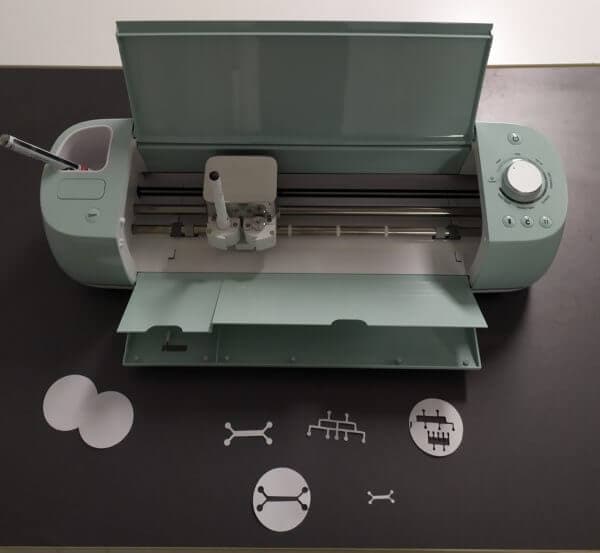

Cutting plotter :

Cutting machine with tunable pressure and number of cycles adapted to cut a wide range of materials. The blade and mattress can be adjusted according to the thickness of the material.
A device adapted for xurography-based microfluidics and rapid mask making:
This machine is ideal to explore all the possibilities of paper-based microfluidics. Thanks to the double tool holder, it is possible to cut and use hydrophobic ink for elaborated designs. Its wide range of pressure allows one to fine-tune the settings of the materials to cut and easily create molds from adhesives.

  • Cutting speed: 5cm/s
  • Resolution down to 200µm

Rolling mill

Rolling mill machine working with 6 rolls with 4 heating. The speed and the temperature can be adapted according to the application and can be used for thicknesses up to 3mm. The rolls can move towards and backwards and are easily cleanable.

  • Easy to use
  • Wide range of speed (up to 1,3m/min) and temperature (up to 140°C)
  • Digital panel for perfect parameters control
  • Easy to clean

Each pack can be adapted to your laboratory and technological requirements.
We can provide quotes for the special featured packs however, we do not provide separate quotes for individual equipment.
