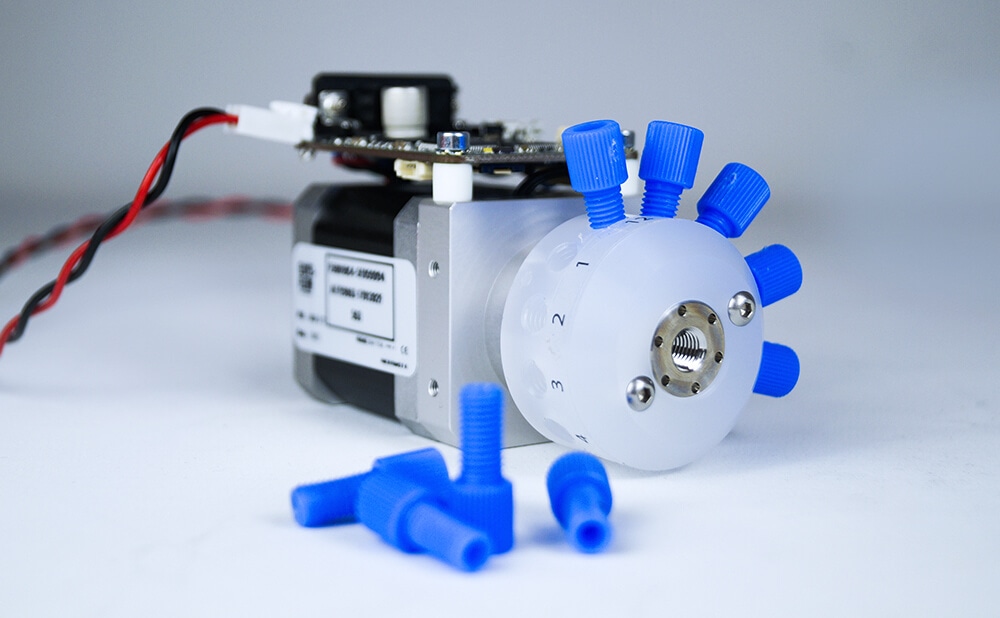

12/1 rotary bidirectional microfluidic valve OEM version

Rotary selector valve

Switch between up to 12 liquids

Perfuse solutions

Inject 1 sample into 12 outputs or 12 samples into 1 output

Workflow microfluidic automation

Save time thanks to sequence programming

Easy integration

Straightforward software, fluidic and electrical integration

Talk to an expert

Features & benefits

Perform microfluidic sequential injection with the 12/1 Rotary Valve.
Combined with our OEM pressure controller, it will allow you to easily integrate to your product or platform a fully automatized injection system.

BENEFITS

Several solutions from one outlet or one feed directed into different outlets.

Use this rotary valve to sequentially inject up 12 different solutions into one microfluidic line for sample collections or parallel experiments.

- - Easy set up and operation
  - Small footprint
  - Smooth switches
  - Low internal volume
  - Reduced switching time
  - Workflow microfluidic automation

Very easily integrate the valve to your system thanks to its small footprint, robust electronics and provided SDKs (C, LabVIEW, MATLAB & Python) for straightforward software control

Reviews

		NEW 12/1 valve
Category	Parameter	Value
Performances	Port to port switching time (ms)	156 ms
	Max recommended pressure	7 bar
	Internal diameter	0.5 mm
	Internal volume(1)	3.5 µL
	Carryover volume(2)	1.7 µL
	Dead volume (3)	None
	Wetted materials	PCTFE, PTFE
	Number or ports	13
	Number of positions	12
	Operating temperature	5-40°C
	Operating Humidity	20-70% noncondensing
	Size	42.3x60x95.9 mm

Volume inside the system from entrance to exit
Volume of liquid that will be mixed with the next liquid. It is not stuck, but will be swept next time a liquid passes.
Volume that is stuck in the system (dead end), which is not clearly swept and relies on diffusion to clear out

Need help or technical information?

Talk to an expert

Software

A free software for all instruments

Powerful, modular and versatile set-up control solution

The ESI software can control up to 16 Instruments through the same interface. Thanks to TTL triggers you can synchronize your Elveflow system with any other instrument used in your laboratory (microscope or any electrical instrument … ). The Scheduler is a user-friendly tool to automate complex steps of your experiments and protocols.

Volume
Injection
module

Enter your targeted volume and this module will automatically adjust the flow rate at the right time to inject it.

Fluidic system optimization module

Automatic diagnostic of the fluidic path sizing and recommendations to improve your microfluidic setup.

Bubble
detection
module

Do not suffer anymore because of bubbles!

Sensor calibration module

Don’t lose precious time in calibration protocols.
