HOW DO YOU SUCCEED YOUR GLASS PDMS PLASMA BONDING?

Tutorial-glass-PDMS-plasma-bonding-plasma

The glass / PDMS plasma bonding

The plasma bonding step enables to finish your microfluidic chip fabrication. To permanently bond the PDMS chip to the glass slide researchers use a plasma cleaner to change the surface properties of glass and PDMS. The plasma treatment will modify the surface chemicals and allows to stick the PDMS with the channels against other substrates (PDMS or glass).

If this step is going wrong, your chip will leak and will not be up to use normally. You will have to be careful on different points in the choice of the plasma cleaner but in the protocol too.

Need an advice for glass/PDMS bonding ?

Feel free to contact us at:

contact@elveflow.com

Ask me your question

(We will answer within 24 hours)





Email (Mandatory)

Your needs

RELEVANT PARAMETERS TO SUCCEED THE GLASS PDMS PLASMA BONDING

Tutorial-glass-PDMS-plasma-bonding-Finger-print

Surface properties

The plasma is a device that influences the surface; all contamination will highly affect the final results of the treatment. Contrary to popular thinking, for a glass PDMS plasma bonding, a longer treatment will not improve the surface except for really particular cases. For example the presence of fat such as a fingerprint will lead to a treatment failure on the concerned surface.

The air pollution inside the plasma cleaner chamber

The gas composition inside the plasma room will change the kind of chemical links that are created on the surface of your glass or PDMS. Some impurities even in very low quantity will pollute your surface. The most common polluting is oil coming from the vacuum pump or from the compressors around. Because of the oil inside the plasma cleaner chamber, you will probably see the same plasma that you used to see but the chemical will be different and the PDMS will not bond.

Tutorial-glass-PDMS-plasma-bonding-plasma-color-air-O2

One indicator of the plasma success: its stability and color

A good indicator of the quality of the plasma is generally its color/luminosity (which depends on the pressure and the gas used). Since the color may change, what you have to remember is, if your color plasma change with the same parameters, a problem probably has happened.

The plasma time

The timing is a good key of the success of your treatment and thus of your bonding. A too short plasma treatment will not functionalized the whole surface and a plasma treatment too long will too strongly modify your PDMS surface. The longer the plasma is activated, the rougher is your surface and the bonding properties will be affected. With plasma usually used for soft lithography, the perfect time to have the most powerful bond is generally between 20 and 60 seconds.

Tutorial-glass-PDMS-plasma-bonding-roughness-PDMS

Tutorial-glass-PDMS-plasma-bonding-timer

The timing after the plasma

Just after the plasma treatment the chemical bonds of the surface begin to recombine and after a few minutes the surface becomes not enough activated for glass PDMS plasma bonding. For this statement, you have to do the bonding just after the treatment, do not let your sample inside the plasma room after venting, and put them together rapidly.

A bake to improve the glass PDMS plasma bonding quality

To make the chemical link easier after the contact between the PDMS and the glass or PDMS, it is recommended to heat the set. The time, the temperature and the device can change between the laboratory and the user. A baking at 80-90°C during 15-30 minutes is usually enough to have a great bonding.

The choice of the gas

The surface state will depend on the gas used. A room air plasma will work really well in most cases. Some researchers will prefer pure O2 to have a total controlled atmosphere but it requires more equipment and strictness during the process.

The dusts

The presence of dust on the surface will prevent the glass PDMS plasma bonding where the dust is but also on a disc around and the size will depend on the rigidity of the PDMS. A first cleaning with, at least, a clean dry air jet is required. There are other methods to remove dust, you can use 3M Scotch tape to remove particles on the surface or more efficiently you can dive your chip in Isopropanol and use sound wave to detach all unwanted particles on the surface and inside the holes in the PDMS.
To clean the glass use successively acetone, isopropanol, water and dry it.

GLASS PDMS PLASMA BONDING : Some wrong common ideas

You need to press strongly on the PDMS chip to correct the glass PDMS plasma bonding

Press strongly on the PDMS to urge a bonding is tempting to correct a bad plasma treatment. However it is not working, what you really risk to do is to collapse and deform your channel irreversibly. Keep in mind that the bonding have to be fast and easy. If the contact is not good between your two parts it is perhaps because of dust. In order to correct the bonding, the only try to do, is to heat your set and press gently again the chip.

We can move the PDMS chip a second time after a first contact

If you put your chip at the wrong place the first time or if the plasma treatment is not working everywhere it’s useless to try to reposition your chip a second time. The best thing to do is to throw out the chip or to do the plasma treatment again but it can’t be certain to work and it’s certainly not reproducible.

GLASS PDMS PLASMA BONDING : HOW TO CHECK THE QUALITY OF YOUR PLASMA TREATMENT DURING THE CALIBRATION STEPS OF YOUR PROCESS ?

First test: the angle contact measure

The plasma treatment modifies the surface properties and namely the hydrophobicity of the glass and PDMS. A good treatment makes the surface hydrophilic. A first test consists in putting a water droplet (about 20µl) on each surface and measure the angle contact with the surface. A contact angle below 20° will generally lead to an adhesion strength upper than 2.5bar.

Second test: the spreading of the sticking front

When you bond your chip, at the contact the part become darker so you can follow the contact. After the plasma treatment drop off gently the PDMS on the glass or on an other piece of PDMS the contact front should progress of itself quickly and easily.

Third test: no leaking at high pressure

A third test consists in injecting a liquid inside your device and test its behaviour with high pressure. You can use a simple syringe and push with fingers it will be enough to have several bar.

glass-PDMS-plasma-bonding-test

Fourth test: the wrenching

This last test is destructive, and consists in wrenching the chip from its shelf. The chip should break and not be removable, it will remain PDMS on both parts. Normally a good bonding will enable to use your device for pressure until around 3 to 5 bars.

soft-lithography-SU-8-PDMS-microfluidic-chips

Begin with Soft-lithography ?

Do your own  SU8 Mold and PDMS chips

> We install everything & train your team in 1 week

> Plug and play soft-lithography protocol

> Get the highest resolution without clean room



Tutorials : Introduction about soft lithography

Definition Microfluidic

Soft-lithography definitions

When you talk about microfluidic some words can be new, we gather here some common and relevant definitions ...
Read More
Microfluidic-fabrication-technics-short

Introduction about soft-lithography for microfluidics

Unlike photolithography, soft lithography can process a wide range of elastomeric materials, i.e. mechanically soft materials ...
Read More
PDMS-membrane-short

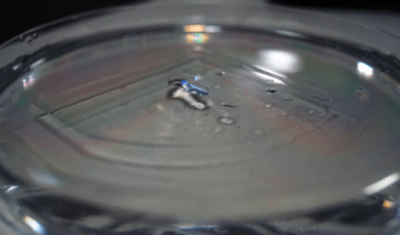

PDMS membrane: thickness of a spin coated PDMS layer

The final PDMS layer thickness mainly depends of spin-coating speed and duration ...
Read More
Photolithography-mask-short

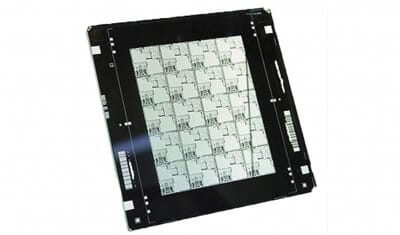

Introduction about photomask in microfluidics

A photolithography mask is an opaque plate or film with transparent areas that allow light to shine through a defined pattern ...
Read More
Microfluidic Wafer SU8 Mold

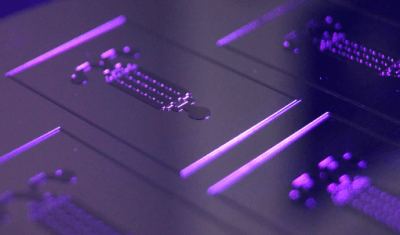

SU-8 mold lithography

Here you can find a complete over view of a SU-8 mold fabrication process ...
Read More
PDMS-chip-short

PDMS softlithography

Here you can find a complete over view of a PDMS chip replication ...
Read More

Tutorials : How to choose your soft lithography instrument

Microfluidic 3D Printer

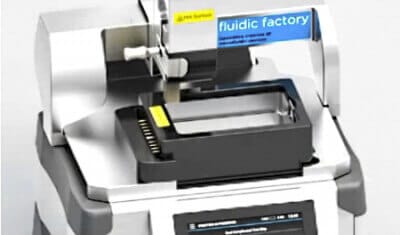

Microfluidic 3D printer

Every following technology are based on the same system of additive process, every object is build layer by layer after being sliced by an informatics systems ...
Read More
How-to-choose-plasma-pdms

PDMS Soft lithography : Plasma cleaner

A plasma cleaner to bond your PDMS chip, you will find here the relevant points to think about ...
Read More
UVLamp-short-HowToChoose

SU-8 photolithography : UV sources

An UV Lamp to exposed your SU-8 photoresist, you will find here the relevant points to think about ...
Read More
Spin-coater-short-HowToChoose

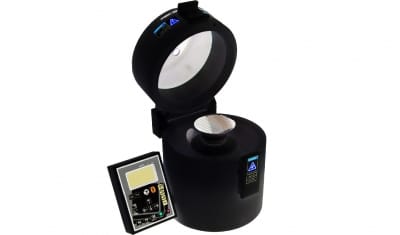

SU-8 photolithography : Spin coater

A spin coater to create thin layer of photoresist or PDMS, you will find here the relevant points to think about ...
Read More
Hot-plate-short-HowToChoose

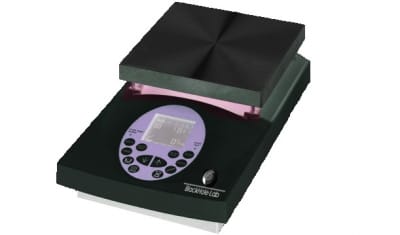

SU-8 photolithography : Hot plates

A hot plate to bake your SU-8 photoresist, you will find here the relevant points to think about ...
Read More
Photolithography-mask-HowToChoose

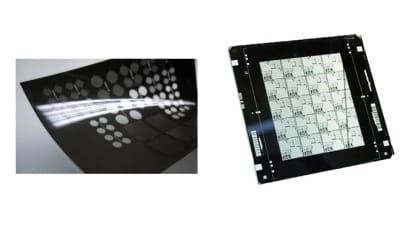

SU-8 photolithography: photomask

Basically you have the choice between glass or plastic photolithography mask, but how to do choice? you will find here some information to help you in the decision ...
Read More

Tutorials : How to get the best soft lithography  process

PDMS microfluidic light

Soft lithography SU-8 Coating

In soft lithography, the fabrication of a mold, often made in SU-8, is required for replicating PDMS microfluidic structures ...
Read More
Soft Lithography SU-8 baking

Soft Lithography: SU-8 baking

Replicating PDMS-based structures first requires the fabrication of a SU-8 master mold that will serve as a patterned template for PDMS casting ...
Read More
Spin-coater-short-HowToChoose

SU-8 photolithography: Spin-coating

How do you do to have a successful spin coating? Here you will find the tips and tricks to do it ...
Read More
Hot-plate-short-HowToChoose

SU-8 photolithography: Baking

How do you do to have a successful photoresist baking? Here you will find the tips and tricks to do it ...
Read More
UVLamp-short-HowToChoose

SU-8 photolithography: UV exposure

How do you do to have a successful SU-8 exposure? Here you will find the tips and tricks to do it ...
Read More
How-to-choose-plasma-pdms

Soft lithography: Glass/PDMS bonding

How do you do to have a successful PDMS bonding with a plasma cleaner? Here you will find the tips and tricks to do it ...
Read More

Tutorials : Microfluidic device fabrication

Photolithography-mask-short

Fabrication of glass and film photomasks

The photolithography mask is an important tool in soft photolithography processes, we explain here how they are made ...
Read More

Influence of your microfluidic laboratory environmental parameters on your photomask

PDMS chips, soft lithography ... Do it yourself ! More information about the SoftLithoBox®   Environmental and mechanical conditions can affect the ...
Read More
Microfluidic-foundries-short

Microfluidic Foundries

If you don’t fabricate your microfluidic device by yourself, it is important to choose the right manufacturer to fabricate your microfluidic chips. Here is a list of microfluidic foundries ...
Read More
Microfluidic-fabrication-technics-short

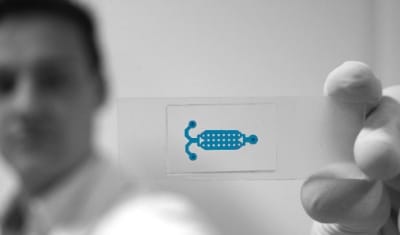

Microfluidic fabrication technics
