Perfusion for live cell imaging: Methods and techniques

Introduction to perfusion for live cell imaging

Cell culture under perfusion for microscopy live cell imagingLive-cell imaging is a method which focuses on the observation of live cells and is widely used in cellular biology research and biomedical industry. This short review will present some technical aspects and challenges encountered in this field.

Need advice to choose your perfusion system?

Feel free to contact us at:

contact@elveflow.com

Ask me your question

(We will answer within 24 hours)





Email (Mandatory)

Your needs

PERFUSION PACK

FOR CELL CULTURE

Microfluidic perfusion pack for cell culture

This fully integrated solution includes all the necessary elements to easily perform cell biology on chip experiments

PERFUSION PACK

The Perfusion Pack has been designed to fit most common cell biology researchers needs. Whatever you need, feel free to contact us to discuss about your exact need and if necessary we will adapt the pack and chips to your particular research application.

  • Medium renewal without any pulsation
  • Flow rate: from 0.1 µL/min to 5 mL/min
  • Easily inject drugs or reagents
  • Compatible with all kinds of slides or perfusion chambers

Piezo electric microfluidics flow control

I. Cell culture with perfusion systems

1. Perfusion culture VS static culture

Nowadays, the most widely used cell culture system is static culture, where the cells are cultivated inside Petri dishes or multiwall plates. In static culture, the culture medium is supplied in a batch manner. Static cell culture systems have the advantages of being economical and easy to use. But in terms of long-term cell culture, they present important flaws. The first drawback is the high risk of contamination caused by repeated manual interventions. The second one is the fluctuation of the cell environment due to the medium replacement process.

Compared to static cell culture, perfusion culture provides a more sterile environment and a more stable culture environment thanks to the continuous nutrient supply and waste removal. This allows more quantifiable cell environment.

Perfusion culture also allows long-term study under microscope. With live-cell imaging techniques, it can be important to be able to replace culture medium without opening the perfusion chamber.

3D cell culture perfusion for live cell imaging microscopyMoreover, perfusion culture is an important tool for 3D cell culture. The goal of 3D cell culture is to obtain a microenvironment mimicking as closely as possible the in vivo microenvironment. Indeed, in their native environment, cells are submitted to various biological and physical cues, such as cell-cell interactions, signalling molecules and mechanics of the surrounding extra cellular matrix in a three-dimensional manner.

In 3D cell culture, cells are seeded on a 3D scaffold material. This scaffold makes difficult manual interventions such as medium changing. Perfusion systems can thus be useful to overcome this issue.

Perfusion cell culture is certainly more challenging than conventional static cell culture, but allows to have a more precise control over cell microenvironment, which makes it an interesting tool for a wide range of biological applications.

2. Perfusion chambers and microfluidic cell culture systems

Perfusion chamber for live cell imaging

Perfusion cell culture systems can be used both with traditional perfusion chambers or microfluidic chips.

Perfusion chambers are widely commercially available. They are generally specifically designed for live imaging. In order to perform perfusion cell culture, it is required to choose closed configuration chambers with fluid lines. Dedicated chamber holders can be found, allowing to use several chambers at the same time. For more information about perfusion chambers for imaging, see our dedicated short review.

Microfluidics is currently a promising and growing field for cell culture applications. Specific physical phenomena occurring at micrometer scale, such as the creation of laminar flows and concentration gradients, can be used to precisely control cells microenvironment. Combined with the other techniques offered by micro-nanotechnologies (e.g. mechanical cues, surface functionalization), microfluidics can be an even more useful tool for precise cell studies. Simple and robust microfluidic systems for cell culture under perfusion are commercially available, and a growing number of researchers are focusing on designing specific microfluidic chips for cell culture in 2D or 3D. For more information about microfluidic perfusion cell culture, see our dedicated review and the bibliographic resources at the end of this review.

3. Pumping mechanisms

One critical aspects of a perfusion cell culture system is the choice of the fluid delivery method. Several types of pumping mechanisms are available.

Pressure-driven flow controller

The principle of this technique is to apply a controlled air flow inside a reservoir containing the perfusion medium in order to create a pressure-driven flow. The main advantage of this method is that it results in a very stable, pulse-less flow rate, even at very low flow rates. It can also achieve rapid medium switches if needed.

Pressure driven perfusion system for live cell imaging

Peristaltic pump

In a peristaltic pump, the fluid is contained inside a flexible tube fitted inside a circular pump casing. A rotor, equipped with several rollers, turns and the roller compress the tube, forcing the fluid to move through the tube. One advantage of this technique is that peristaltic pumps can be miniaturised and integrated inside microfluidic chip to obtain autonomous perfusion cell culture systems. It is also appreciated  because of its easiness of sterilization and prevention of reagents contaminations. However, this type of pump is not able to generate a very stable flow rate, especially at low flow rates.

Peristaltic pump for perfusion in live cell imaging

Syringe pump

In a syringe pump, the fluid in held inside a syringe and a motor apply a pressure to a syringe plunger. This method is very effective to deliver small volume of fluid but, as peristaltic pump, is not suited for stable low flow rates.

Syringe pump for perfusion in live cell imaging

4. Critical issues in perfusion cell culture

Recirculating VS non-recirculating medium

Two different perfusion modes can be used: recirculating or non-recirculating. In recirculating mode, a given volume of culture medium is recirculating throughout the perfusion system. It is used in order to keep the molecule secreted by the cells in the culture medium. If cell-cell chemical communication is not essential to the experiment or if these chemical cues have to be ruled out, non-recirculating perfusion can be used, allowing to permanently remove secreted factors, waste products and thus wash cells.

Shear stress

Hydrodynamic shear stress can be a limiting factor for perfusion cell culture. In order to eliminate its effects, it is possible to lower the perfusion flow rate. Some have demonstrated that the minimum shear stress shown to affect differentiation or proliferation when applied continuously is about 0.5 N/m2. On the other hand, some experiments take advantage of the phenomena, by using high level of shear stress to investigate for example endothelial cell function in in-vivo conditions, i.e. with shear stress conditions or to assay cell adhesions.

Another way to reduce shear stress is to use microfluidic chips with dedicated geometries, such as microfluidic chips including a porous membrane acting as a barrier for the medium flow.

Temperature control

Temperature is a critical parameter of the cell environment for long-term studies on live cells. Several temperature control systems designed to be used while performing live-cell imaging are commercially available.

Bubble formation

Air bubbles have a strong detrimental effect on cell culture. First, bubble trapped inside tubing or microfluidic channels can obstruct fluid flow. Then, bubbles are known to kill cells at their gas-liquid interface. A good way to eliminate bubbles is to apply a high flow rate inside the perfusion system prior to seeding the cells. A soft surfactant medium, like SDS is very effective to release air bubble from perfusion chamber.

II. How to choose your perfusion chamber and perfusion system ?

1. Perfusion chamber

A wide range of perfusion chambers are commercially available. Live cell imaging experiments can be performed with conventionnal perfusion chambers, microslides or microfluidic chips. Depending on your experiment, some chambers will be more suited to your needs. Don’t hesitate to read our review about perfusion chambers for imaging for more technical information about the different types of perfusion chambers, and to check our short overview of the different perfusion chambers commercially available.

2. Perfusion system

Again, the choice of a perfusion system depends on the type of experiment. For simple live cell imaging experiments, pressure-driven flow controller, syringe or peristaltic pumps can be used. For experiments requiring more control over cells environment, injection at very low flow rates or switch between different media/reagents, pressure-driven are more adapted. Don’t hesitate to contact us, our team of fluidic specialists will help you choose the system that best fits the need of your experiment.

III. Bibliographic resources

Live cell imaging methods – Methods and Protocol, Springer, 2010

Min-Hsien Wu, Song-Bin Huangb and Gwo-Bin Lee, Microfluidic cell culture systems for drug research, Lab on a chip, 2010

Lily Kim, Yi-Chin Toh, Joel Voldman and Hanry Yu, A practical guide to microfluidic perfusion culture of adherent mammalian cells, Lab on a chip, 2007

Rafael Gomez-Sjoberg, Anne A. Leyrat, Dana M. Pirone, Christopher S. Chen, and Stephen R. Quake, Versatile, Fully Automated, Microfluidic Cell Culture System, Analytical Chemistry, 2007

For more tutorial about microfluidics, please visit our other tutorials here: «Microfluidics tutorials». The photos in this article come from the Elveflow® data bank, Wikipedia or elsewhere if precised. Article written by Emmanuelle Nadal and Timothée Houssin.

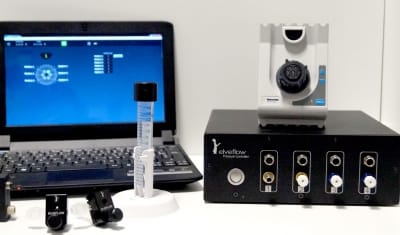

perfusion pack cell culture live cell imaging medium injection

FAQ: Perfusion Pack

Everything you need to know about our all-in-one Perfusion Pack for live-cell imaging chambers or microfluidic chips ...
Read More

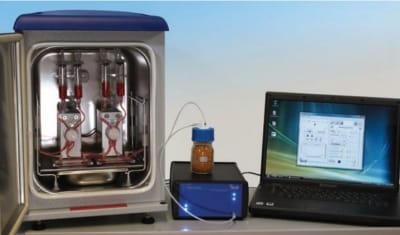

ibidi-pump-system-for-perfusion-assays-and-microscopy
