AF1 DUAL- MICROFLUIDIC PRESSURE & VACUUM PUMP

This system is designed to generate a stable and pulseless flow for a wide variety of microfluidic applications.

The Dual AF1 has a pressure range from -700 mbar to 1bar. It can be used both as a vacuum source or a pressure source and enables you to switch from vacuum to pressure on the same channel.

AF1_Dual-microfluidic-pressure-vacuum-flow-control

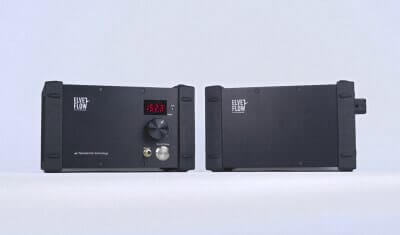

VACUUM & PRESSURE GENERATOR

Vacuum & Pressure Pump

This instrument is designed to be perfectly compatible with the AF1 Dual Vacuum & Pressure Controller in order to provide the control and accuracy you need. This instrument can also be used independently.

VACUUM & PRESSURE CONTROLLER

Regulate negative & positive pressure

This instrument covers a pressure control range from -700 mbar to 1000 mbar. It has to be linked to an external pressure source such as the AF1 Dual Vacuum & Pressure Generator in order to supply regulated vacuum and pressure.

Get Quote or Technical Information

(We will answer within 24 hours)





Email (Mandatory)

Your needs


AF1-microfluidic-vacuum-pressure-pump-film-bird1An autonomous pump with the advantage of the most recent piezoelectric technology for microfluidics

The embedded micro-compressor makes unnecessary the typical air compressor or air line scheme. Only one thing is required to install your setup – an electrical plug!

The Dual AF1 has a pressure range from -700 mbar to 1bar. It can be used both as a vacuum source or a pressure source and enables you to switch from vacuum to pressure on the same channel.

Wide range of applications

  • Digital microfluidics: micro-droplets, anisotropic particles, double emulsion generation & handling
  • Bead and particle manipulation
  • Fast liquid sample switching
  • Cell culture experiments

Performance

The piezoelectric technologies used in the AF1 provides the world’s most accurate flow control for your microfluidic experiment.

  • Pressure stability: 0.05 %
  • Sensor resolution: 0.006 %
  • Settling time: 40 ms
  • Response time: 50 ms

Configurations

Choose the pressure range fitted to your application

Range available :

  • 200 mbar
  • 1.6 bar
  • -700 mbar/+1 bar

Fully customizable & OEM

The AF1 can be modified to fit almost all specific microfluidic requirements. An OEM version is available and the instrument is upgradable. Buy it today and add functions later.

High volume

Piezo technology enables fast pressurization of tanks up to 1 liter and enables to set up long term or high flow rate microfluidic experiments.

Flow rate control (optionnal)

AF1 pressure pump can be coupled with a flow sensor. Using our feedback loop, you can monitor and control flow rate in your microfluidic setup while keeping stability and responsiveness of pressure driven flows.

AF1 microfluidic pressure and vacuum pump

Manual or USB software

For early stage scientific experiments, monitor and control pressure using the front panel knob and screen. With the AF1, you can switch from manual to USB control at any time using the Elveflow® Smart Interface.

Elveflow® instruments are built around a common application which facilitates navigation from one instrument to another. Our Smart Interface enables you to control your setup after a few minutes of training.

Complete setup synchronisation

The AF1  is equipped with internal & external trigger connectors and  can thus be synchronized with any other Elveflow® product, a microscope or any electrical instrument… It also enables the synchronization of up to 16 instruments simultaneously.

Microfluidc-flow-control-software-AF1-microfluidic-pressure-and-vacuum-pumpComplex fluidic profiles

Create, monitor and modify in real-time complex pressure and flow rate profiles such as sine, square, triangle, ramp, pulse, or sawtooth…

The following table summarizes the main features of the AF1 pressure pump.

microfluidic-flow-control-pressure-vacuum-pump

(1) Output stability measured at 150 mBar with an external High accuracy pressure sensor (Druck DPI150)

(2) Depending on user computer operating system

(3) Volume dependent – Measurement done on 12 mL tank for a set point from 0 to 200 mbar

Microfluidc-flow-control-software-HeartBeat-AF1-pressure-vacuum-pump

NI-microfluidic-software-AF1-microfluidic-pressure-vacuum-pump

National Instruments is our technological partner for embedded electronics and software

USB pressure pump software module

Elveflow® instruments are assembled around a software application that facilitates the switch from one instrument to another. Thanks to an intuitive interface, the Elveflow® Smart Interface enables the use of Elveflow® instruments from the simplest commands for beginners to the most complex manipulations for experts… read more

Our USB Software enables you to control complex flow and pressure profile.

The user can apply constant pressure of flow and ramp, but also sine, triangle or square waveforms with desired parameters. A graphic allows monitoring of either the applied pressure or of the flow rate (using a flow sensor or of any external sensor).

DLL and libraries

Control your experiments through C, Python, Matlab®, Labview® or the Elveflow® Smart Interface.

> Configurations
Store pressure configurations and switch from one to another in a second

> Edit functions
Complex pressure and flow rate profiles such as ramp, sine, square and triangle can be defined.

> Flow control
When used with a flow sensor, a feedback loop with adaptable sensors allows for a direct control of the flow rate.

> Display & save data
Real time pressure and flow rate are monitored and can be saved for later studies.

Microfluidic Ressources

> Testimonials

> Publications

> Applications Notes

> About Performance

> FAQ

AF1 DUAL PRESSURE PUMP SETUP

Schema_AF1dual_microfluidics

1. PRESSURE & VACUUM SOURCE

The liquid is smoothly and precisely injected onto the microfluidic chip using suction force. The optional module Dual Vacuum & Pressure Generator is designed to replace vacuum and compressed air systems. The dual pressure unit produces positive and negative pressure and is perfectly fitted for the Dual AF1.

2. PRESSURE & VACUUM CONTROLLER

Fast and accurate pressure and vacuum control.

3. MONITORING

Control pressure using your computer or the instrument’s front panel knob.

4. SAMPLE 1

The tank protects your AF1 from liquid back flow and can also function as a microfluidic reservoir when using the AF1 as a pressure source (compatible with Eppendorf, Falcon or bottle ).

5. CHIP

The liquid is smoothly and precisely injected onto the microfluidic chip using suction force.

6 . SAMPLE 2

Depressurize the liquid inside the microfluidic reservoir with your Dual AF1 Vacuum & Pressure Controller (compatible with Eppendorf, Falcon or bottle ).

Related Products

OB1 microfluidic Pressure-controller-MK3-800

OB1 – 4 channels microfluidic flow controller

The only microfluidic flow control system using Piezo technology and enabling a blazing fast flow change in your microdevice ...
Read More
microfluidic flow-sensor 3

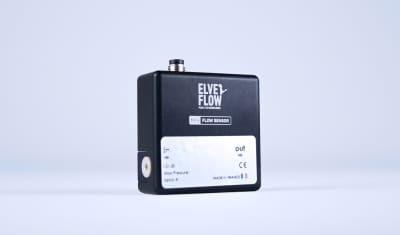

MFS – Microfluidic flow sensors

We provide high accuracy liquid mass flow sensors for ultra low flow rate monitoring ...
Read More
Microlfuidic flow control software Screen

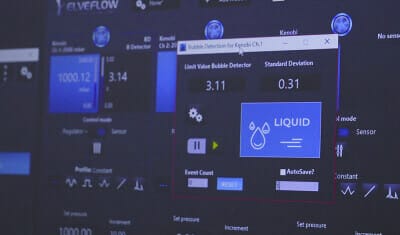

Software & SDK

Elveflow® instruments are built around a common application which facilitates navigation from one instrument to another. ...
Read More
Microfluidic-accessories-shop

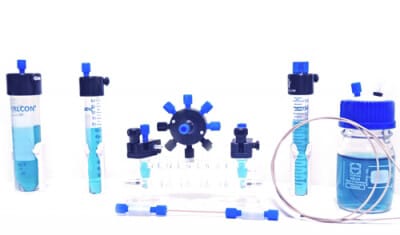

Elveflow Microfluidics Accessories Shop

Looking for innovative solutions? Discover and buy our microfluidic Kits & Accessories from our online Shop! ...
Read More
Microfluidic pressure sensor white

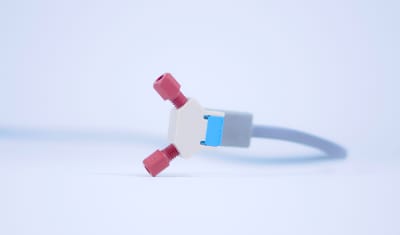

MPS – Microfluidic pressure sensor

We provide high accuracy pressure sensor adapted to liquids, compatible with 3/32 ID or 1/16 OD tubing ...
Read More
microfluidics-flow-switch-matrix-valvess (1)2

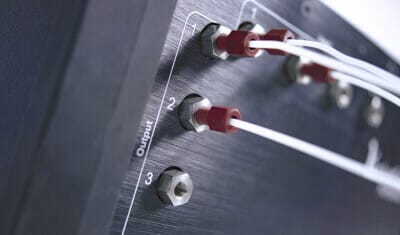

MUX – microfluidic flow switch matrices

4 unique microfluidic flow switch matrices Great capabilities for new possibility, Quake valve control, Medium switch, Live cell perfusion, Stop flow ...
Read More
OEM microfluidic flow control

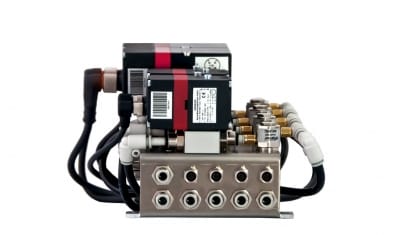

Microfluidic flow control OEM solutions
